Media Gateway


MediaGateway from Technica Engineering is a development tool for testing and analysing on-board vehicle networks.

It allows users to disconnect and loop through up to 12 100BASE-T1-based devices on the physical layer and to establish virtual point-to-point connections, thus making it possible to fi lter and control data streams (routing, mirroring, forwarding).

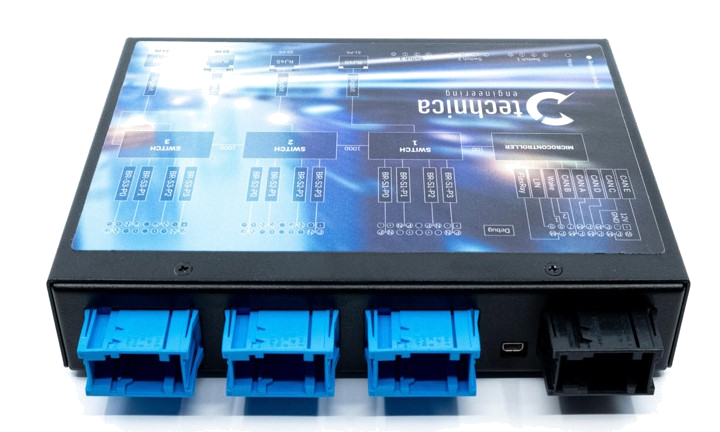

media gateway

MediaGateway is the most widely used development and testing tool for on-board vehicle networks using 100BASE-T1. It’s in-built automotive switches and 12 x 100BASE-T1 ports enable both capture of traffi c between devices while mantaining the normal comunication, as well as interaction with such devices via your test set-up. It supports single and double tagging of VLANs, Mirroring, Forwarding and more. An additional and optional CAN-Ethernet bidirectional conversion is available, as well as FlexRay logging via Ethernet.

The SFP slot supports commercial-grade SFP modules (e.g. optical or RJ-45) as well as our 100BASE-T1 SFP Module in order to get a 13th Automotive Ethernet Port or our 1000BASE-T1 SFP Module – this makes the MediaGateway ready for Automotive Gigabit Ethernet!


  • 12 Broadcom 100BASE-T1 ports (100 MBit/s full duplex on a single unshielded twisted pair)
  • 3 Gigabit Ethernet ports
  • 1 SFP Gigabit Ethernet port
  • Automotive Tyco MQS connectors for 100BASE-T1 and power supply
  • Web server for easy confi guration: Master/Slave, HalfOut/FullOut, Port Forwarding, Port Mirroring, VLAN Tagging
  • WakeUp function by CAN Bus or Wakeline
  • Power output for attached devices: VBAT max. 1 Ampere in total
  • 19 status LEDs
  • Possibility to reset to default settings by pushbutton
  • Robust stainless steel case
  • Power requirement: 8 to 16 V DC, power consumption: 8 Watt
  • Size: 195 x 143 x 33 mm
  • 802.1AS Bridge function
